Install required R packages

# # Install the remotes package
# if (!requireNamespace("remotes", quietly = TRUE)) {
#   install.packages("remotes")
# }
# # Install Seurat
# if (!requireNamespace("Seurat", quietly = TRUE)) {
#     remotes::install_github("satijalab/seurat", "seurat5", quiet = TRUE)
# }
# # Install BiocManager
# if (!require("BiocManager", quietly = TRUE))
#     install.packages("BiocManager")

# # Install SingleR package
# if (!require("hdf5r", quietly = TRUE)){
#     BiocManager::install("hdf5r")
# }
# # Install SingleR package
# if (!require("presto", quietly = TRUE)){
#     remotes::install_github("immunogenomics/presto")
# }
# # Install SingleR package
# if (!require("SingleR", quietly = TRUE)){
#     BiocManager::install("SingleR")
# }
# if (!require("celldex", quietly = TRUE)){
#     BiocManager::install("celldex")
# }
# if (!require("SingleCellExperiment", quietly = TRUE)){
#     BiocManager::install("SingleCellExperiment")
# }
# if (!require("scater", quietly = TRUE)){
#     BiocManager::install("scater")
# }

## Installing the R packages could take around 51 minutes
## To speed up this process, you can download the R lib files
## saved from a working Google Colab session
## https://drive.google.com/file/d/1EQvZnsV6P0eNjbW0hwYhz0P5z0iH3bsL/view?usp=drive_link
system("gdown 1EQvZnsV6P0eNjbW0hwYhz0P5z0iH3bsL")

system("md5sum R_lib4scRNA.tar.gz", intern = TRUE)

'5898c04fca5e680710cd6728ef9b1422 R_lib4scRNA.tar.gz'

## required by scater package
system("apt-get install libx11-dev libcairo2-dev") #, intern = TRUE)

system("tar zxvf R_lib4scRNA.tar.gz")

.libPaths(c("/content/usr/local/lib/R/site-library", .libPaths()))

.libPaths()
  1. '/content/usr/local/lib/R/site-library'
  2. '/usr/local/lib/R/site-library'
  3. '/usr/lib/R/site-library'
  4. '/usr/lib/R/library'

Load required R packages

library(Seurat)
library(dplyr)
library(SingleR)
library(celldex)
library(scater)
library(SingleCellExperiment)

list.files()
  1. 'R_lib4scRNA.tar.gz'
  2. 'sample_data'
  3. 'usr'
# https://drive.google.com/file/d/1-CvmcLvKMYW-OcLuGfFuGQMK2b5_VMFk/view?usp=drive_link
# Download "filtered_feature_bc_matrix.h5"
# Output of cellranger
system("gdown 1-CvmcLvKMYW-OcLuGfFuGQMK2b5_VMFk")

system("md5sum filtered_feature_bc_matrix.h5", intern = TRUE)

'360fc0760ebb9e6dd253d808a427b20d filtered_feature_bc_matrix.h5'

count_mtx_scrna <- Read10X_h5("filtered_feature_bc_matrix.h5")
# If you have the filtered_feature_bc_matrix/ folder, you can use
# Read10X to create 'count_mtx_scrna'
# system("mkdir filtered_feature_bc_matrix/; mv filtered_feature_bc_matrix.zip filtered_feature_bc_matrix")
# system("cd filtered_feature_bc_matrix; unzip filtered_feature_bc_matrix.zip")
# count_mtx_scrna <- Read10X("filtered_feature_bc_matrix/")

class(count_mtx_scrna)

'dgCMatrix'

The dgCMatrix class is a specific data structure in R's Matrix package, designed to store sparse matrices in a memory-efficient format. Sparse matrices are those with many zeros, making them ideal for high-dimensional data in applications like bioinformatics, where gene expression matrices often contain a lot of zeroes.

Why Use dgCMatrix?

  • Memory Efficiency: Storing only non-zero values saves memory, especially in high-dimensional matrices.
  • Computational Speed: Some operations on sparse matrices can be faster, as computations are limited to non-zero entries.
print(format(object.size(count_mtx_scrna), units = "MB"))

[1] "168.7 Mb"

# Check a few genes in the first 20 cells
count_mtx_scrna[c("CD3D", "TCL1A", "MS4A1"), 100:140]

  [[ suppressing 41 column names ‘AACCATGCACTCAAGT-1’, ‘AACCATGGTAGCTTGT-1’, ‘AACCATGTCAATCCGA-1’ ... ]]




3 x 41 sparse Matrix of class "dgCMatrix"

CD3D  8 1 . . . 3 . 2 10  . 3 . . . 2 7 1 . . . 1 1  . 8 . . 2 4 . . . 12 11 .
TCL1A . . . . . . 6 .  .  . . . . . . . . . . . . . 10 . . . . . . . .  .  . .
MS4A1 . . . . . . 9 .  . 16 . . . . . . . . . . . .  5 . . . . . . . .  .  . .

CD3D   . 5 . .  . 3 .
TCL1A  . . . .  . . .
MS4A1 20 . . . 39 . .

# non-normalized da# Initialize the Seurat object with the raw count matrix
pbmc <- CreateSeuratObject(counts = count_mtx_scrna,
                        project = "pbmc5k",
                        min.cells = 3, min.features = 200)
pbmc

An object of class Seurat
24785 features across 4884 samples within 1 assay
Active assay: RNA (24785 features, 0 variable features)
 1 layer present: counts

Understand Seurat object

Seurat slots https://github.com/satijalab/seurat/wiki/seurat

str(pbmc)

Formal class 'Seurat' [package "SeuratObject"] with 13 slots
  ..@ assays      :List of 1
  .. ..$ RNA:Formal class 'Assay5' [package "SeuratObject"] with 8 slots
  .. .. .. ..@ layers    :List of 1
  .. .. .. .. ..$ counts:Formal class 'dgCMatrix' [package "Matrix"] with 6 slots
  .. .. .. .. .. .. ..@ i       : int [1:14449622] 6 17 42 62 79 83 85 94 100 109 ...
  .. .. .. .. .. .. ..@ p       : int [1:4885] 0 3378 5344 5581 8581 10897 13921 16902 20299 22669 ...
  .. .. .. .. .. .. ..@ Dim     : int [1:2] 24785 4884
  .. .. .. .. .. .. ..@ Dimnames:List of 2
  .. .. .. .. .. .. .. ..$ : NULL
  .. .. .. .. .. .. .. ..$ : NULL
  .. .. .. .. .. .. ..@ x       : num [1:14449622] 1 1 4 1 1 2 1 1 1 1 ...
  .. .. .. .. .. .. ..@ factors : list()
  .. .. .. ..@ cells     :Formal class 'LogMap' [package "SeuratObject"] with 1 slot
  .. .. .. .. .. ..@ .Data: logi [1:4884, 1] TRUE TRUE TRUE TRUE TRUE TRUE ...
  .. .. .. .. .. .. ..- attr(*, "dimnames")=List of 2
  .. .. .. .. .. .. .. ..$ : chr [1:4884] "AAACCCATCAGATGCT-1" "AAACGAAAGTGCTACT-1" "AAACGAAGTCGTAATC-1" "AAACGAAGTTGCCAAT-1" ...
  .. .. .. .. .. .. .. ..$ : chr "counts"
  .. .. .. .. .. ..$ dim     : int [1:2] 4884 1
  .. .. .. .. .. ..$ dimnames:List of 2
  .. .. .. .. .. .. ..$ : chr [1:4884] "AAACCCATCAGATGCT-1" "AAACGAAAGTGCTACT-1" "AAACGAAGTCGTAATC-1" "AAACGAAGTTGCCAAT-1" ...
  .. .. .. .. .. .. ..$ : chr "counts"
  .. .. .. ..@ features  :Formal class 'LogMap' [package "SeuratObject"] with 1 slot
  .. .. .. .. .. ..@ .Data: logi [1:24785, 1] TRUE TRUE TRUE TRUE TRUE TRUE ...
  .. .. .. .. .. .. ..- attr(*, "dimnames")=List of 2
  .. .. .. .. .. .. .. ..$ : chr [1:24785] "ENSG00000238009" "ENSG00000241860" "ENSG00000290385" "ENSG00000291215" ...
  .. .. .. .. .. .. .. ..$ : chr "counts"
  .. .. .. .. .. ..$ dim     : int [1:2] 24785 1
  .. .. .. .. .. ..$ dimnames:List of 2
  .. .. .. .. .. .. ..$ : chr [1:24785] "ENSG00000238009" "ENSG00000241860" "ENSG00000290385" "ENSG00000291215" ...
  .. .. .. .. .. .. ..$ : chr "counts"
  .. .. .. ..@ default   : int 1
  .. .. .. ..@ assay.orig: chr(0)
  .. .. .. ..@ meta.data :'data.frame': 24785 obs. of  0 variables
  .. .. .. ..@ misc      :List of 1
  .. .. .. .. ..$ calcN: logi TRUE
  .. .. .. ..@ key       : chr "rna_"
  ..@ meta.data   :'data.frame':    4884 obs. of  3 variables:
  .. ..$ orig.ident  : Factor w/ 1 level "pbmc5k": 1 1 1 1 1 1 1 1 1 1 ...
  .. ..$ nCount_RNA  : num [1:4884] 11578 5655 14728 10903 6174 ...
  .. ..$ nFeature_RNA: int [1:4884] 3378 1966 237 3000 2316 3024 2981 3397 2370 2811 ...
  ..@ active.assay: chr "RNA"
  ..@ active.ident: Factor w/ 1 level "pbmc5k": 1 1 1 1 1 1 1 1 1 1 ...
  .. ..- attr(*, "names")= chr [1:4884] "AAACCCATCAGATGCT-1" "AAACGAAAGTGCTACT-1" "AAACGAAGTCGTAATC-1" "AAACGAAGTTGCCAAT-1" ...
  ..@ graphs      : list()
  ..@ neighbors   : list()
  ..@ reductions  : list()
  ..@ images      : list()
  ..@ project.name: chr "pbmc5k"
  ..@ misc        : list()
  ..@ version     :Classes 'package_version', 'numeric_version'  hidden list of 1
  .. ..$ : int [1:3] 5 0 2
  ..@ commands    : list()
  ..@ tools       : list()



slotNames(pbmc)
  1. 'assays'
  2. 'meta.data'
  3. 'active.assay'
  4. 'active.ident'
  5. 'graphs'
  6. 'neighbors'
  7. 'reductions'
  8. 'images'
  9. 'project.name'
  10. 'misc'
  11. 'version'
  12. 'commands'
  13. 'tools'

Access Seurat object

pbmc@active.assay

'RNA'

class(pbmc@meta.data)
head(pbmc@meta.data, 4)

'data.frame'

A data.frame: 4 × 3
orig.identnCount_RNAnFeature_RNA
<fct><dbl><int>
AAACCCATCAGATGCT-1pbmc5k115783378
AAACGAAAGTGCTACT-1pbmc5k 56551966
AAACGAAGTCGTAATC-1pbmc5k14728 237
AAACGAAGTTGCCAAT-1pbmc5k109033000

colSums(pbmc@assays$RNA$counts)[1:3]
AAACCCATCAGATGCT-1
11578
AAACGAAAGTGCTACT-1
5655
AAACGAAGTCGTAATC-1
14728
Layers(pbmc)
  1. 'counts'
  2. 'data'
  3. 'scale.data'

Data preprocessing

# Use $ operator to add columns to object metadata.
pbmc$percent.mt <- PercentageFeatureSet(pbmc,
                           pattern = "^MT-")


colnames(pbmc@meta.data)
  1. 'orig.ident'
  2. 'nCount_RNA'
  3. 'nFeature_RNA'
  4. 'percent.mt'
head(pbmc, 4)
A data.frame: 4 × 8
orig.identnCount_RNAnFeature_RNApercent.mtRNA_snn_res.0.1seurat_clusterssingleR_hpcasingleR_blueprint
<fct><dbl><int><dbl><fct><fct><chr><chr>
AAACCCATCAGATGCT-1pbmc5k1157833783.6275695311T_cells CD4+ T-cells
AAACGAAAGTGCTACT-1pbmc5k 565519664.2970822300T_cells CD4+ T-cells
AAACGAAGTCGTAATC-1pbmc5k14728 2370.0271591566ErythroblastErythrocytes
AAACGAAGTTGCCAAT-1pbmc5k1090330004.8977345755T_cells CD8+ T-cells

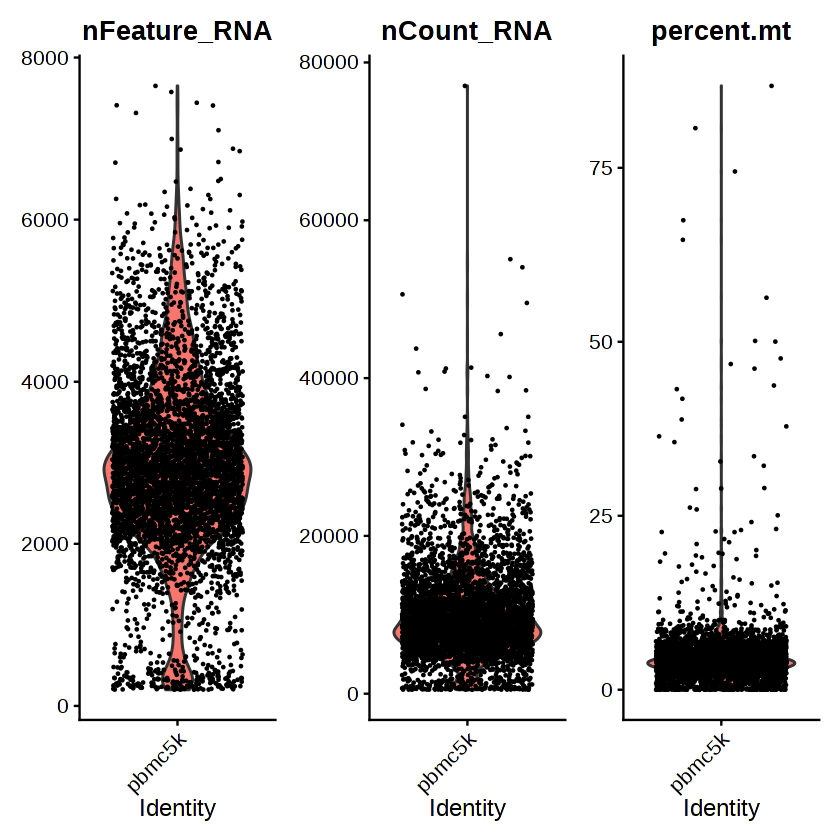

# Use violin plot to visualize QC metrics
VlnPlot(pbmc,
        features = c("nFeature_RNA", "nCount_RNA", "percent.mt"),
        ncol = 3)

Warning message:
“Default search for "data" layer in "RNA" assay yielded no results; utilizing "counts" layer instead.”

png

How to read the Violin Plot

  • Shape: Each violin plot shows the distribution of values for each feature across the cells in your dataset. The shape of the plot indicates the density of cells with particular values for that feature.

    Wider sections indicate more cells with those values. Narrow sections indicate fewer cells with those values.

  • Vertical Axis: Represents the range of values for each feature. For instance:

nFeature_RNA and nCount_RNA: Higher values suggest more gene diversity and RNA content, respectively.

percent.mt: Higher values indicate higher mitochondrial content, which may point to stressed or dying cells.

  • Horizontal Axis (Groups): If your dataset is separated into clusters or groups (e.g., cell types or conditions), each group will have its own violin, allowing you to compare distributions between groups.

How to interpret QC plot

nFeature_RNA: The number of unique features (genes) detected per cell.

Extremely high values could suggest potential doublets (two cells mistakenly captured as one), as two cells would have more unique genes combined.

Low number of detected genes - potential ambient mRNA (not real cells)

nCount_RNA: The total number of RNA molecules (or unique molecular identifiers, UMIs) detected per cell.

Higher counts generally indicate higher RNA content, but they could also result from cell doublets. Cells with very low nCount_RNA might represent poor-quality cells with low RNA capture, while very high counts may also suggest doublets.

percent.mt: The percentage of reads mapping to mitochondrial genes.

High mitochondrial content often indicates cell stress or apoptosis, as damaged cells tend to release mitochondrial RNA.

Filtering cells with high percent.mt values is common to exclude potentially dying cells.

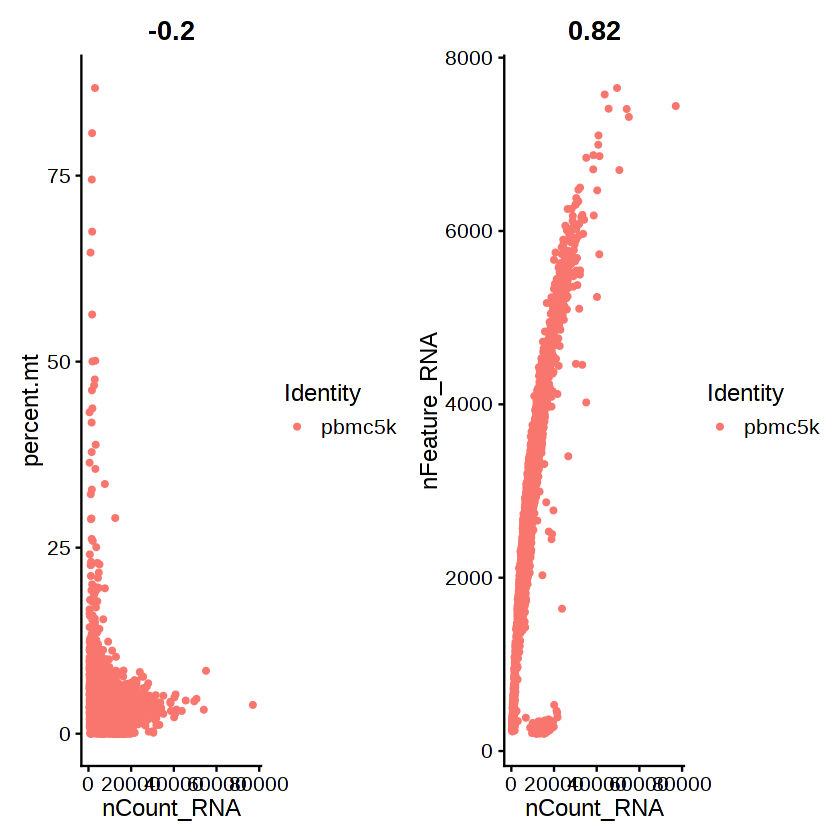

# FeatureScatter is typically used to visualize feature-feature relationships, but can be used
# for anything calculated by the object, i.e. columns in object metadata, PC scores etc.

plot1 <- FeatureScatter(pbmc, feature1 = "nCount_RNA", feature2 = "percent.mt")
plot2 <- FeatureScatter(pbmc, feature1 = "nCount_RNA", feature2 = "nFeature_RNA")
plot1 + plot2

png

# Load necessary libraries
library(Seurat)
library(ggplot2)

# Define the function to calculate median and MAD values
calculate_thresholds <- function(seurat_obj) {
  # Extract relevant columns
  nFeature_values <- seurat_obj@meta.data$nFeature_RNA
  nCount_values <- seurat_obj@meta.data$nCount_RNA
  percent_mt_values <- seurat_obj@meta.data$percent.mt

  # Calculate medians and MADs
  nFeature_median <- median(nFeature_values, na.rm = TRUE)
  nFeature_mad <- mad(nFeature_values, constant = 1, na.rm = TRUE)

  nCount_median <- median(nCount_values, na.rm = TRUE)
  nCount_mad <- mad(nCount_values, constant = 1, na.rm = TRUE)

  percent_mt_median <- median(percent_mt_values, na.rm = TRUE)
  percent_mt_mad <- mad(percent_mt_values, constant = 1, na.rm = TRUE)

  # Calculate thresholds for horizontal lines
  thresholds <- list(
    nFeature_upper = nFeature_median + 4 * nFeature_mad,
    nFeature_lower = nFeature_median - 4 * nFeature_mad,
    nCount_upper = nCount_median + 4 * nCount_mad,
    nCount_lower = nCount_median - 4 * nCount_mad,
    percent_mt_upper = percent_mt_median + 4 * percent_mt_mad
  )

  return(thresholds)
}

# Calculate thresholds
thresholds <- calculate_thresholds(pbmc)


thresholds
$nFeature_upper
5243.5
$nFeature_lower
583.5
$nCount_upper
19044
$nCount_lower
-1224
$percent_mt_upper
8.44783722411371

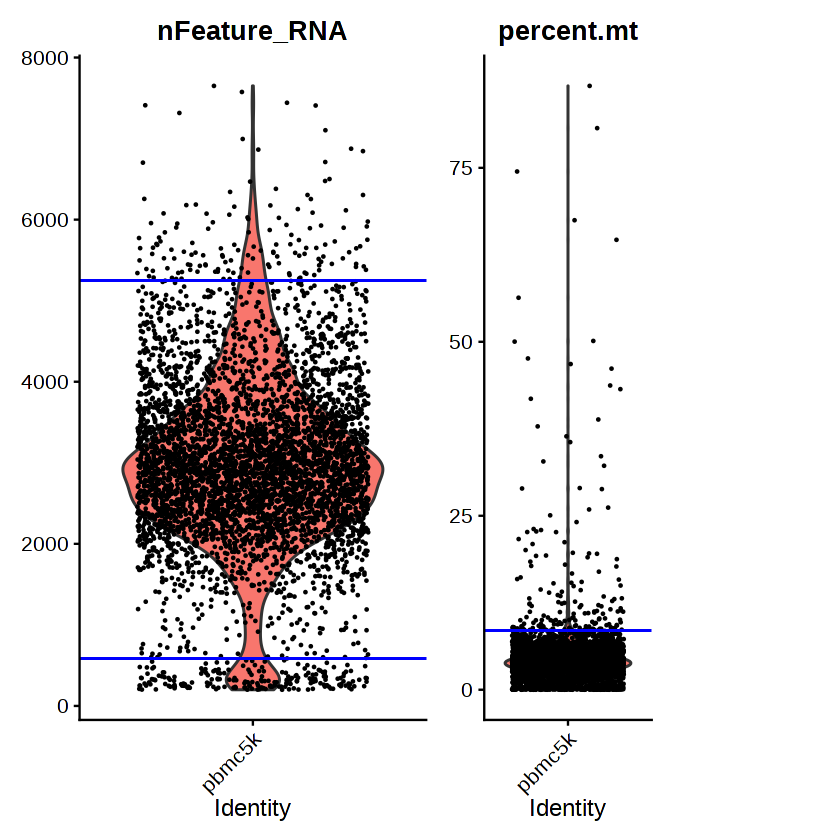

vplot1 <- VlnPlot(pbmc, features = c("nFeature_RNA"), ncol = 2) +
   geom_hline(yintercept = thresholds$nFeature_upper,
              color = "blue", linetype = "solid") +
   geom_hline(yintercept = thresholds$nFeature_lower,
              color = "blue", linetype = "solid") +
              theme(legend.position="none")
vplot2 <- VlnPlot(pbmc, features = c("percent.mt"), ncol = 2) +
   geom_hline(yintercept = thresholds$percent_mt_upper,
              color = "blue", linetype = "solid") +
              theme(legend.position="none")
vplot1 + vplot2

Warning message:
“Default search for "data" layer in "RNA" assay yielded no results; utilizing "counts" layer instead.”
Warning message:
“Default search for "data" layer in "RNA" assay yielded no results; utilizing "counts" layer instead.”

png

Filter out potential doublets, empty droplets and dying cells

pbmc <- subset(pbmc,
                subset =  nFeature_RNA > thresholds$nCount_lower &
                nFeature_RNA < thresholds$nFeature_upper &
                percent.mt < thresholds$percent_mt_upper)


# Use violin plot to visualize QC metrics after QC
VlnPlot(pbmc,
        features = c("nFeature_RNA", "nCount_RNA", "percent.mt"),
        ncol = 3)

png

Instead of using an arbitrary number, you can also use statistical algorithm to predict doublets and empty droplets to filter the cells, such as DoubletFinder and EmptyDrops.

Normalization and Scaling of the data

Normalization

After removing unwanted cells from the dataset, the next step is to normalize the data. By default, a global-scaling normalization method “LogNormalize” that normalizes the feature expression measurements for each cell by the total expression, multiplies this by a scale factor (10,000 by default), and log-transforms the result. In Seurat v5, Normalized values are stored in pbmc[["RNA"]]$data.

pbmc <- NormalizeData(pbmc) # normalization.method = "LogNormalize", scale.factor = 10000

Normalizing layer: counts

While this method of normalization is standard and widely used in scRNA-seq analysis, global-scaling relies on an assumption that each cell originally contains the same number of RNA molecules.

Next, we identify a subset of features that show high variation across cells in the dataset—meaning they are highly expressed in some cells and lowly expressed in others. Prior work, including our own, has shown that focusing on these variable genes in downstream analyses can enhance the detection of biological signals in single-cell datasets.

The approach used in Seurat improves upon previous versions by directly modeling the inherent mean-variance relationship in single-cell data. This method is implemented in the FindVariableFeatures() function, which, by default, selects 2,000 variable features per dataset. These features will then be used in downstream analyses, such as PCA.

pbmc <- FindVariableFeatures(pbmc,
                selection.method = "vst",
                nfeatures = 2000)


Finding variable features for layer counts

# Identify the 10 most highly variable genes
top10 <- head(VariableFeatures(pbmc), 10)
options(repr.plot.width=10, repr.plot.height= 6)

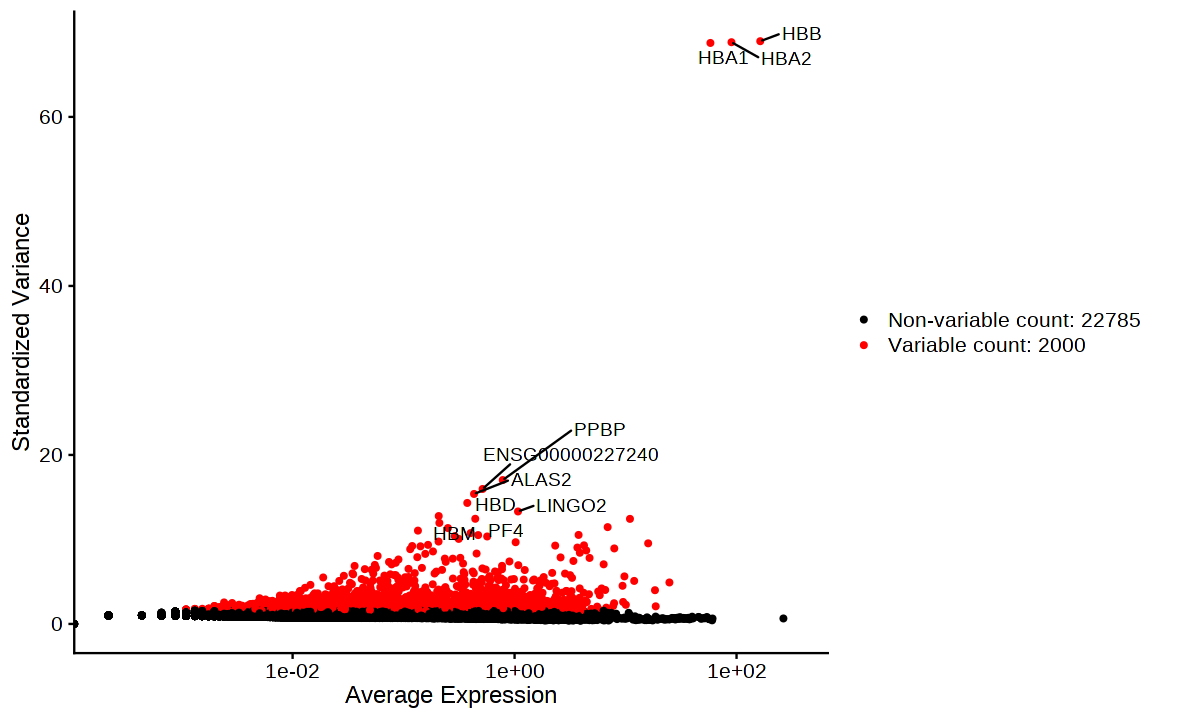

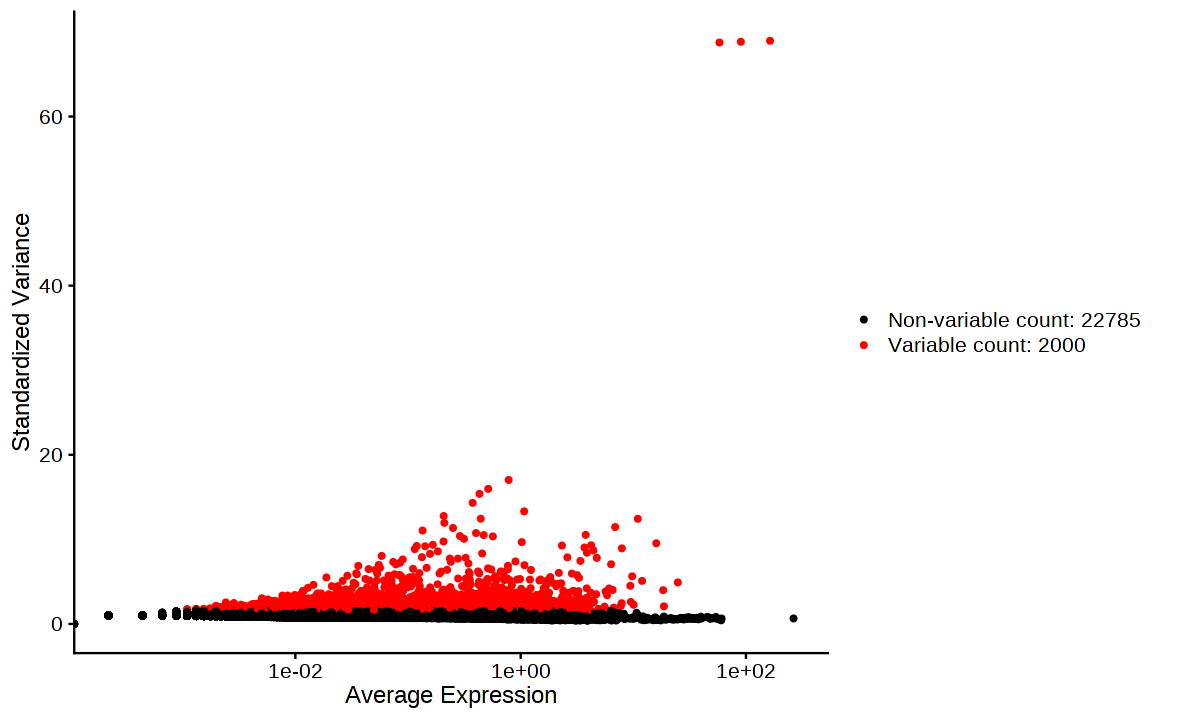

# plot variable features with and without labels
plot1 <- VariableFeaturePlot(pbmc)
plot2 <- LabelPoints(plot = plot1, points = top10, repel = TRUE)
plot1 + plot2


When using repel, set xnudge and ynudge to 0 for optimal results

Warning message in scale_x_log10():
“log-10 transformation introduced infinite values.”
Warning message in scale_x_log10():
“log-10 transformation introduced infinite values.”

png

Scaling the data

Next, we apply a linear transformation (scaling) that is a standard pre-processing step prior to dimensional reduction techniques like PCA. The ScaleData() function:

Shifts the expression of each gene, so that the mean expression across cells is 0 Scales the expression of each gene, so that the variance across cells is 1

This step gives equal weight in downstream analyses, so that highly-expressed genes do not dominate

The results of this are stored in pbmc[["RNA"]]$scale.data

By default, only variable features are scaled. You can specify the features argument to scale additional features.

all.genes <- rownames(pbmc)
pbmc <- ScaleData(pbmc, features = all.genes)

Centering and scaling data matrix

Perform linear dimensional reduction

pbmc <- RunPCA(pbmc, features = VariableFeatures(object = pbmc))

PC_ 1
Positive:  CD247, IL32, IL7R, RORA, CAMK4, LTB, INPP4B, STAT4, BCL2, ANK3
       ZEB1, LEF1, TRBC1, CARD11, THEMIS, BACH2, MLLT3, RNF125, RASGRF2, NR3C2
       NELL2, PDE3B, LINC01934, ENSG00000290067, PRKCA, TAFA1, PYHIN1, CTSW, CSGALNACT1, SAMD3
Negative:  LYZ, FCN1, IRAK3, SLC8A1, CLEC7A, PLXDC2, IFI30, S100A9, SPI1, CYBB
       MNDA, LRMDA, FGL2, VCAN, CTSS, RBM47, CSF3R, MCTP1, NCF2, TYMP
       CYRIA, CST3, HCK, SLC11A1, WDFY3, S100A8, MS4A6A, MPEG1, LST1, CSTA
PC_ 2
Positive:  CD247, S100A4, STAT4, NKG7, CST7, CTSW, GZMA, SYTL3, RNF125, SAMD3
       NCALD, MYO1F, MYBL1, KLRD1, PLCB1, TGFBR3, PRF1, GNLY, RAP1GAP2, RORA
       CCL5, HOPX, FGFBP2, YES1, PYHIN1, FNDC3B, GNG2, SYNE1, KLRF1, SPON2
Negative:  BANK1, MS4A1, CD79A, FCRL1, PAX5, IGHM, AFF3, LINC00926, NIBAN3, EBF1
       IGHD, BLK, CD22, OSBPL10, HLA-DQA1, COL19A1, GNG7, KHDRBS2, RUBCNL, TNFRSF13C
       COBLL1, RALGPS2, TCL1A, BCL11A, CDK14, CD79B, PLEKHG1, HLA-DQB1, IGKC, BLNK
PC_ 3
Positive:  TUBB1, GP9, GP1BB, PF4, CAVIN2, GNG11, NRGN, PPBP, RGS18, PRKAR2B
       H2AC6, ACRBP, PTCRA, TMEM40, TREML1, CLU, LEF1, GPX1, CMTM5, SMANTIS
       MPIG6B, CAMK4, MPP1, SPARC, ENSG00000289621, ITGB3, MYL9, MYL4, ITGA2B, F13A1
Negative:  NKG7, CST7, GNLY, PRF1, KLRD1, GZMA, KLRF1, MCTP2, GZMB, FGFBP2
       HOPX, SPON2, C1orf21, TGFBR3, VAV3, MYBL1, CTSW, SYNE1, NCALD, IL2RB
       SAMD3, GNG2, BNC2, CEP78, YES1, RAP1GAP2, PDGFD, LINC02384, CARD11, CLIC3
PC_ 4
Positive:  CAMK4, INPP4B, IL7R, LEF1, PRKCA, PDE3B, MAML2, LTB, ANK3, PLCL1
       BCL2, CDC14A, THEMIS, FHIT, NELL2, VIM, ENSG00000290067, MLLT3, TSHZ2, NR3C2
       IL32, CMTM8, ENSG00000249806, ZEB1, SESN3, CSGALNACT1, TAFA1, LEF1-AS1, SLC16A10, LDLRAD4
Negative:  GP1BB, GP9, TUBB1, PF4, CAVIN2, GNG11, PPBP, H2AC6, PTCRA, NRGN
       ACRBP, TMEM40, PRKAR2B, RGS18, TREML1, MPIG6B, SMANTIS, CMTM5, CLU, SPARC
       ITGA2B, ITGB3, ENSG00000289621, MYL9, CAPN1-AS1, MYL4, ENSG00000288758, DAB2, PDGFA-DT, CTTN
PC_ 5
Positive:  CDKN1C, HES4, FCGR3A, PELATON, CSF1R, IFITM3, SIGLEC10, TCF7L2, ZNF703, MS4A7
       UICLM, ENSG00000287682, NEURL1, RHOC, FMNL2, CKB, FTL, CALHM6, HMOX1, BATF3
       ACTB, MYOF, CCDC26, IFITM2, PAPSS2, RRAS, LST1, VMO1, SERPINA1, LRRC25
Negative:  LINC02458, AKAP12, CA8, ENSG00000250696, SLC24A3, HDC, IL3RA, EPAS1, ENPP3, OSBPL1A
       TRPM6, CCR3, CSF2RB, SEMA3C, THSD7A, ATP10D, DACH1, CRPPA, ATP8B4, TMEM164
       ABHD5, CLC, CR1, ITGB8, LIN7A, TAFA2, MBOAT2, GATA2, DAPK2, GCSAML

You have several useful ways to visualize both cells and features that define the PCA, including VizDimReduction(), DimPlot(), and DimHeatmap().

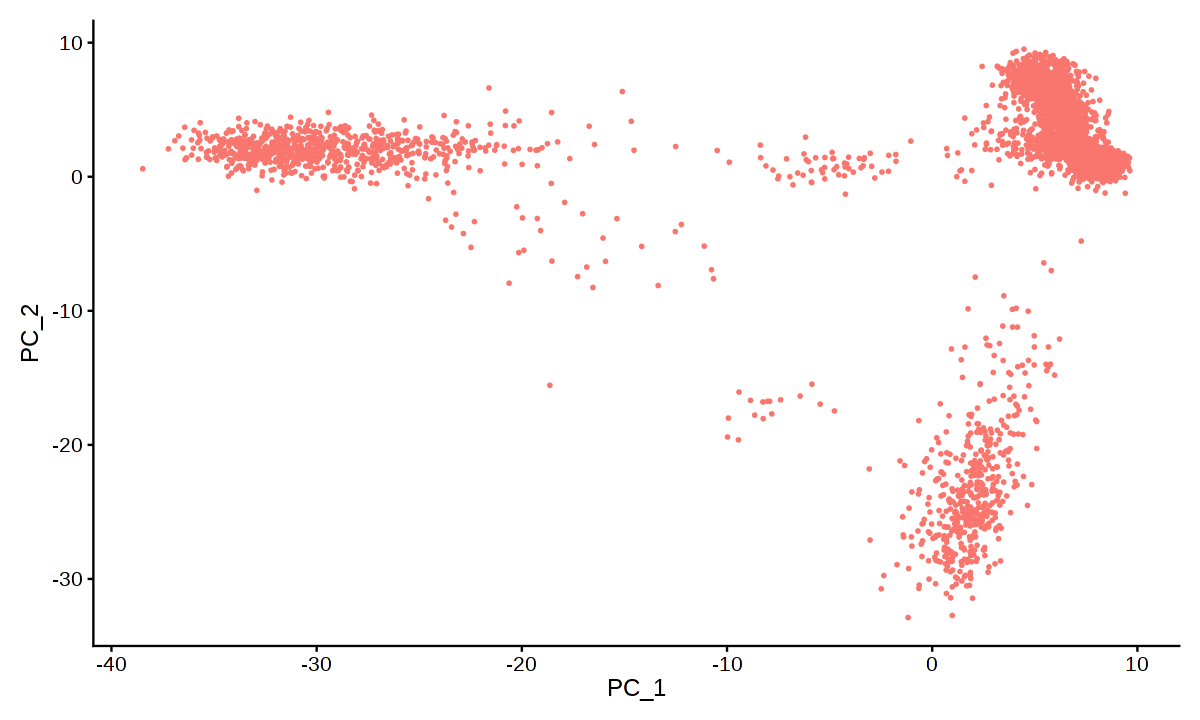

DimPlot(pbmc, reduction = "pca") + NoLegend()

png

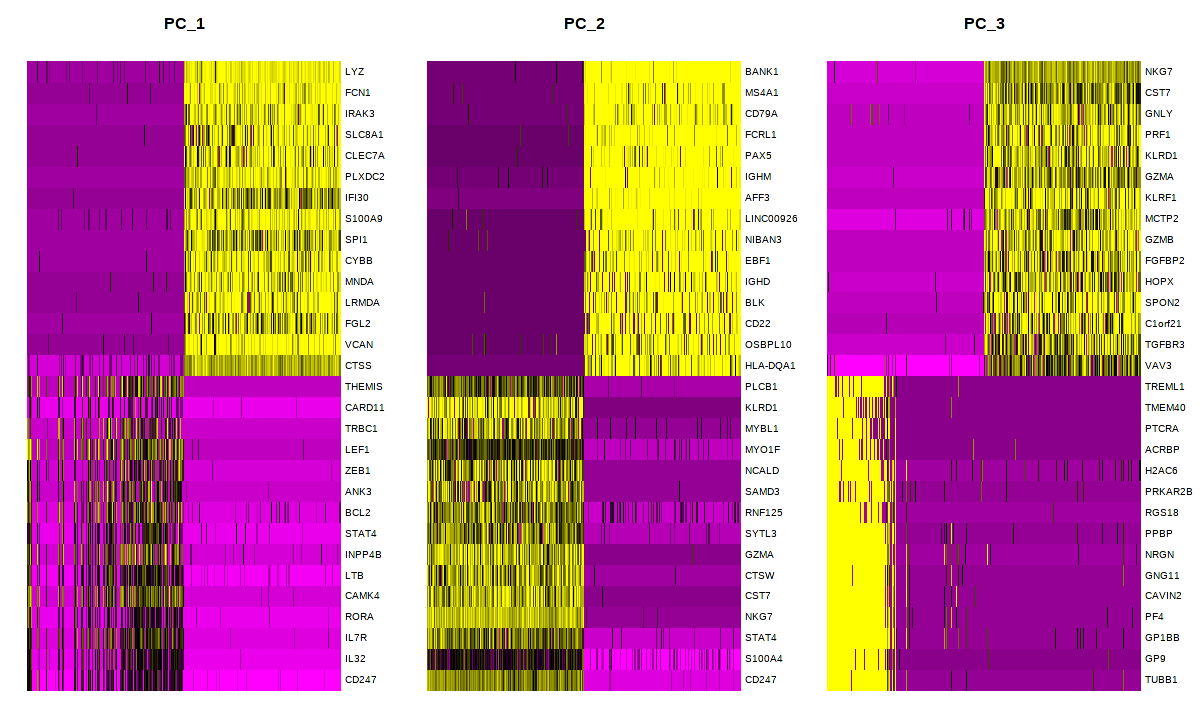

DimHeatmap() draws a heatmap focusing on a principal component. Both cells and genes are sorted by their principal component scores

DimHeatmap(pbmc, dims = 1:3, cells = 500, balanced = TRUE)

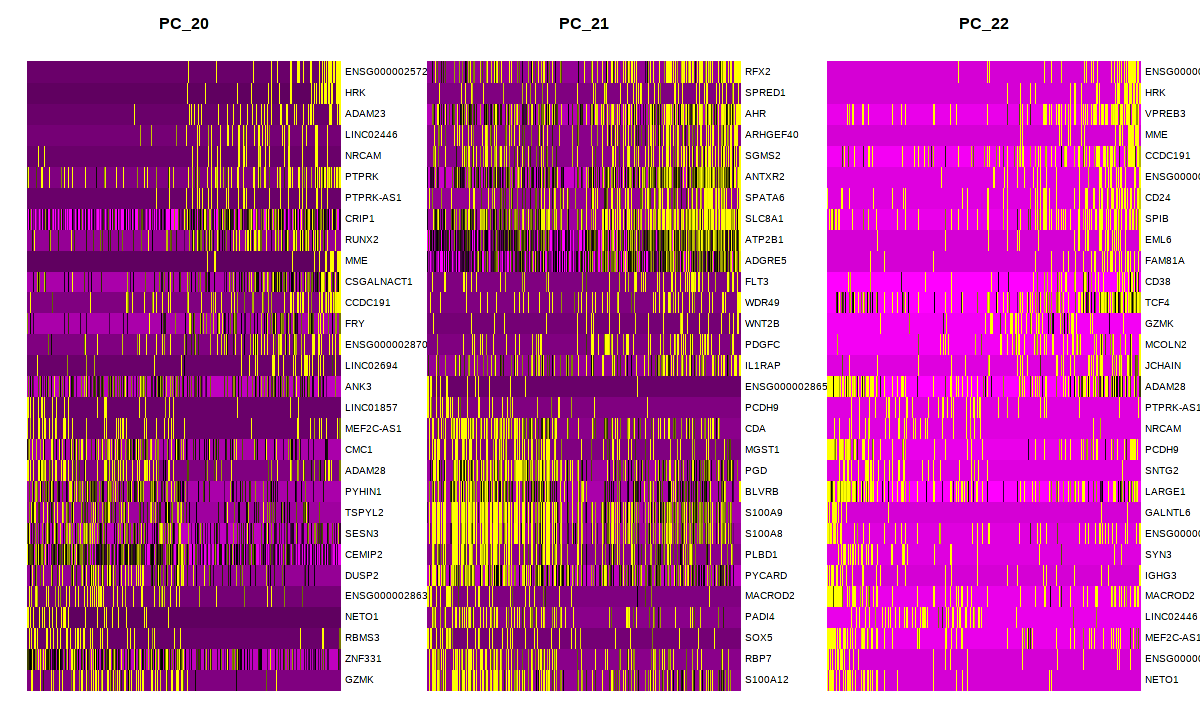

DimHeatmap(pbmc, dims = 20:22, cells = 500, balanced = TRUE)

png

png

Determine the ‘dimensionality’ of the dataset

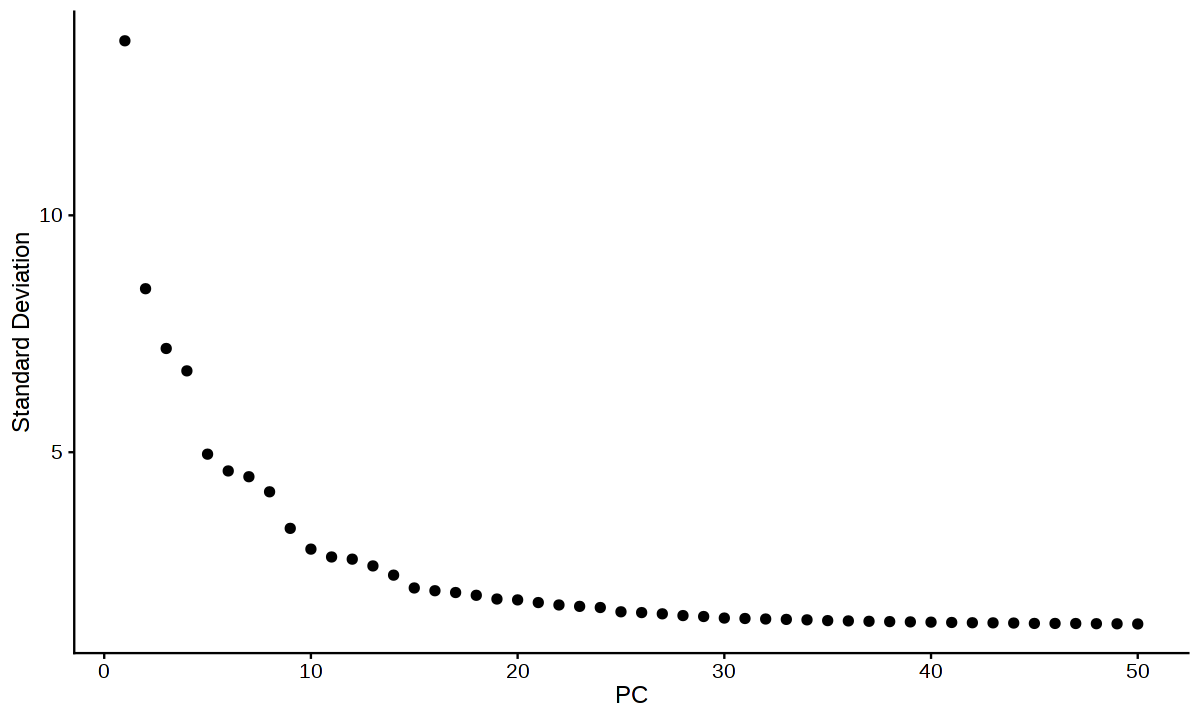

The elbow plot is a useful tool for determining the number of principal components (PCs) needed to capture the majority of variation in the data. It displays the standard deviation of each PC, with the "elbow" point typically serving as the threshold for selecting the most informative PCs. However, identifying the exact location of the elbow can be somewhat subjective.

ElbowPlot(pbmc,  ndims = 50)

png

# Determine the percentage of variation associated with each PC
pct_var <- pbmc[["pca"]]@stdev / sum(pbmc[["pca"]]@stdev) * 100

# Calculate cumulative percentages for each PC
cumu_pct <- cumsum(pct_var)

# Identify the first PC where cumulative percentage exceeds 90% and individual variance is less than 5%
pc_number <- which(cumu_pct > 90 & pct_var < 5)[1]

pc_number

41

Cluster the cells

Seurat embeds cells in a graph structure - for example a K-nearest neighbor (KNN) graph, with edges drawn between cells with similar feature expression patterns, and then attempt to partition this graph into highly interconnected quasi-cliques or communities.

Seurat first constructs a KNN graph based on the euclidean distance in PCA space, and refine the edge weights between any two cells based on the shared overlap in their local neighborhoods (Jaccard similarity). This step is performed using the FindNeighbors() function, and takes as input the previously defined dimensionality of the dataset.

To cluster the cells, Seurat next applies modularity optimization techniques such as the Louvain algorithm (default) or SLM [SLM, Blondel et al., Journal of Statistical Mechanics], to iteratively group cells together, with the goal of optimizing the standard modularity function. The FindClusters() function implements this procedure, and contains a resolution parameter that sets the granularity of the downstream clustering, with increased values leading to a greater number of clusters. We find that setting this parameter between 1 typically returns good results for single-cell datasets of around 5k cells. Optimal resolution often increases for larger datasets. The clusters can be found using the Idents() function.

pbmc <- FindNeighbors(pbmc, dims = 1:pc_number)
pbmc <- FindClusters(pbmc, resolution = 0.1)

Computing nearest neighbor graph

Computing SNN



Modularity Optimizer version 1.3.0 by Ludo Waltman and Nees Jan van Eck

Number of nodes: 4559
Number of edges: 184776

Running Louvain algorithm...
Maximum modularity in 10 random starts: 0.9713
Number of communities: 10
Elapsed time: 0 seconds

# Look at cluster IDs of the first 5 cells
head(Idents(pbmc), 5)
AAACCCATCAGATGCT-1
1
AAACGAAAGTGCTACT-1
0
AAACGAAGTCGTAATC-1
6
AAACGAAGTTGCCAAT-1
5
AAACGAATCCGAGGCT-1
4
Levels:
  1. '0'
  2. '1'
  3. '2'
  4. '3'
  5. '4'
  6. '5'
  7. '6'
  8. '7'
  9. '8'
  10. '9'

Run non-linear dimensional reduction (UMAP/tSNE)

To visualize and explore these datasets, Seurat offers several non-linear dimensional reduction techniques, such as tSNE and UMAP.

The goal of tSNE/UMAP is to learn underlying structure in the dataset, in order to place similar cells together in low-dimensional space. Therefore, cells that are grouped together within graph-based clusters determined above should co-localize on these dimension reduction plots.

pbmc <- RunUMAP(pbmc, dims = 1:pc_number)


01:21:37 UMAP embedding parameters a = 0.9922 b = 1.112

01:21:37 Read 4559 rows and found 41 numeric columns

01:21:37 Using Annoy for neighbor search, n_neighbors = 30

01:21:38 Building Annoy index with metric = cosine, n_trees = 50

0%   10   20   30   40   50   60   70   80   90   100%

[----|----|----|----|----|----|----|----|----|----|

*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
|

01:21:38 Writing NN index file to temp file /tmp/RtmpwNVWV1/file10a4d98f0d9

01:21:38 Searching Annoy index using 1 thread, search_k = 3000

01:21:40 Annoy recall = 100%

01:21:41 Commencing smooth kNN distance calibration using 1 thread
 with target n_neighbors = 30

01:21:43 Found 2 connected components,
falling back to 'spca' initialization with init_sdev = 1

01:21:43 Using 'irlba' for PCA

01:21:43 PCA: 2 components explained 46.09% variance

01:21:43 Scaling init to sdev = 1

01:21:43 Commencing optimization for 500 epochs, with 188320 positive edges

01:21:49 Optimization finished

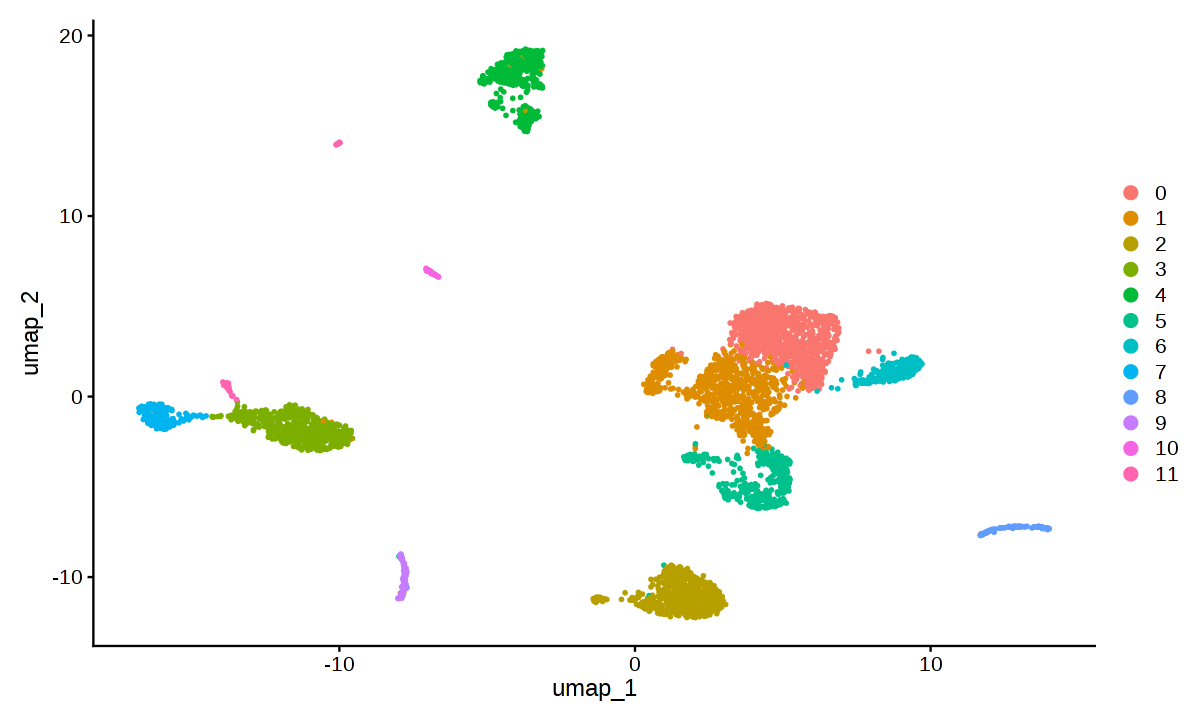

DimPlot(pbmc, reduction = "umap")

png

Finding differentially expressed features (cluster biomarkers)

# find markers for every cluster compared to all remaining cells, report only the positive
# ones
pbmc.markers <- FindAllMarkers(pbmc, only.pos = TRUE)
pbmc.markers %>%
    group_by(cluster) %>%
    dplyr::filter(avg_log2FC > 1)

Calculating cluster 0

Calculating cluster 1

Calculating cluster 2

Calculating cluster 3

Calculating cluster 4

Calculating cluster 5

Calculating cluster 6

Calculating cluster 7

Calculating cluster 8

Calculating cluster 9
A grouped_df: 14138 × 7
p_valavg_log2FCpct.1pct.2p_val_adjclustergene
<dbl><dbl><dbl><dbl><dbl><fct><chr>
0.000000e+002.1939380.9740.426 0.000000e+000IL32
3.852209e-2751.6793260.9510.3629.547700e-2710CD3D
9.596093e-2601.8038850.8880.3522.378392e-2550TRAC
4.781243e-2521.5734250.9590.5321.185031e-2470SYNE2
3.690404e-2351.5123880.9170.3489.146665e-2310CD3G
9.967907e-2321.8093230.9100.4852.470546e-2270RORA
1.117947e-2271.3786990.9510.3802.770831e-2230CD3E
1.039791e-2082.2538210.6810.2332.577123e-2040NIBAN1
2.027326e-1871.5959960.8100.3575.024728e-1830CD2
8.928063e-1811.5128220.8460.3832.212820e-1760IL7R
2.768362e-1792.5833970.4630.0916.861385e-1750PRDM1
2.609892e-1661.8259630.7770.3896.468617e-1620PPP1R16B
8.007361e-1663.8886150.3100.0311.984624e-1610TRGC2
1.861258e-1631.6945870.7170.2964.613128e-1590CD6
1.403718e-1581.0725410.9690.8073.479115e-1540PPP2R5C
9.430895e-1582.2003030.5250.1472.337447e-1530CD5
5.325382e-1531.3143410.8350.4331.319896e-1480SPOCK2
5.541697e-1511.5013780.7570.3631.373510e-1460GPRIN3
1.783366e-1481.5241680.8150.4924.420072e-1440LRRC8C
5.511823e-1461.1301970.9370.7721.366105e-1410EML4
4.406921e-1451.8070490.8210.5351.092255e-1400TNFAIP3
8.596339e-1451.3229560.8000.3912.130603e-1400LIME1
1.601435e-1431.3017530.8610.5053.969156e-1390ATXN1
3.308730e-1404.0117860.2830.0338.200689e-1360GZMK
1.881698e-1381.5867760.7700.4134.663787e-1340PHACTR2
8.271921e-1381.4862930.7910.4792.050196e-1330TTC39C
8.346144e-1353.6994700.2450.0202.068592e-1300MIAT
2.291535e-1261.4201320.7250.3485.679570e-1220ANK3
2.583870e-1262.0751130.4770.1516.404121e-1220PBX4
3.042390e-1251.3335020.6940.3167.540564e-1210OPTN
⋮⋮⋮⋮⋮⋮⋮
0.0091166293.6316800.0210.00219H4C1
0.0091166293.6085580.0210.00219ENSG00000289291
0.0091166293.6052350.0210.00219VAMP1-AS1
0.0091166293.5914950.0210.00219ENSG00000249328
0.0091166293.5670200.0210.00219ERICH2-DT
0.0091166293.5500000.0210.00219NLRP10
0.0091166293.5180270.0210.00219ENSG00000270087
0.0091166293.4961660.0210.00219ENSG00000253593
0.0091166293.3932070.0210.00219ADAM11
0.0091166293.2725240.0210.00219ENSG00000228150
0.0091166293.2662810.0210.00219LINC03065
0.0091166293.2214560.0210.00219STARD13-AS
0.0091166293.1096400.0210.00219FGGY-DT
0.0091166292.1161850.0210.00219ENSG00000285751
0.0093531831.4869860.1460.05719TRPM2
0.0095609271.1981070.0830.02419SYCP3
0.0095637811.3675240.0620.01519MAP7
0.0095954021.2839870.0830.02419PPP1R13L
0.0096867542.5847490.0420.00819PRRG2
0.0097067142.4074450.0420.00819LINC02185
0.0097467442.4739510.0420.00819LINC02901
0.0097668142.3009280.0420.00819WNK3
0.0097668141.6400830.0420.00819CALCRL-AS1
0.0097869212.4348780.0420.00819ENSG00000272112
0.0097869222.4382940.0420.00819ENSG00000277589
0.0098474642.2629340.0420.00819PCDH15
0.0098474642.0645140.0420.00819CIBAR1
0.0098880112.1735700.0420.00819SEZ6
0.0099083401.7468600.0420.00819RTKN
0.0099935421.3408090.1460.05919ENSG00000287100

# find all markers distinguishing cluster 5 from clusters 0 and 3
cluster5.markers <- FindMarkers(pbmc, ident.1 = 5, ident.2 = c(0, 3))
head(cluster5.markers, n = 5)
A data.frame: 5 × 5
p_valavg_log2FCpct.1pct.2p_val_adj
<dbl><dbl><dbl><dbl><dbl>
PTPRK4.438261e-1965.4774360.5940.0201.100023e-191
NRCAM9.537544e-1967.8157450.4960.0052.363880e-191
AIF11.738908e-1924.2870960.8040.0774.309884e-188
LINC024463.824707e-1764.7821070.6380.0399.479537e-172
NELL27.816637e-1503.0587790.9690.2131.937354e-145

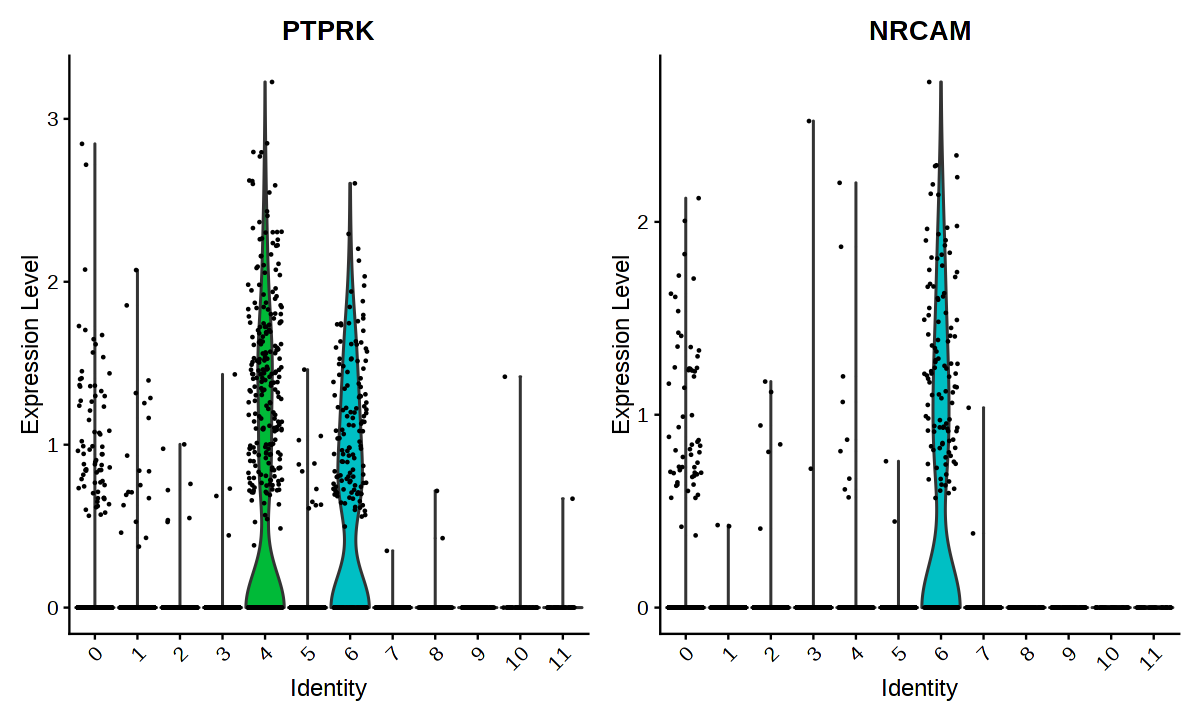

VlnPlot(pbmc, features = c("PTPRK", "NRCAM"))

png

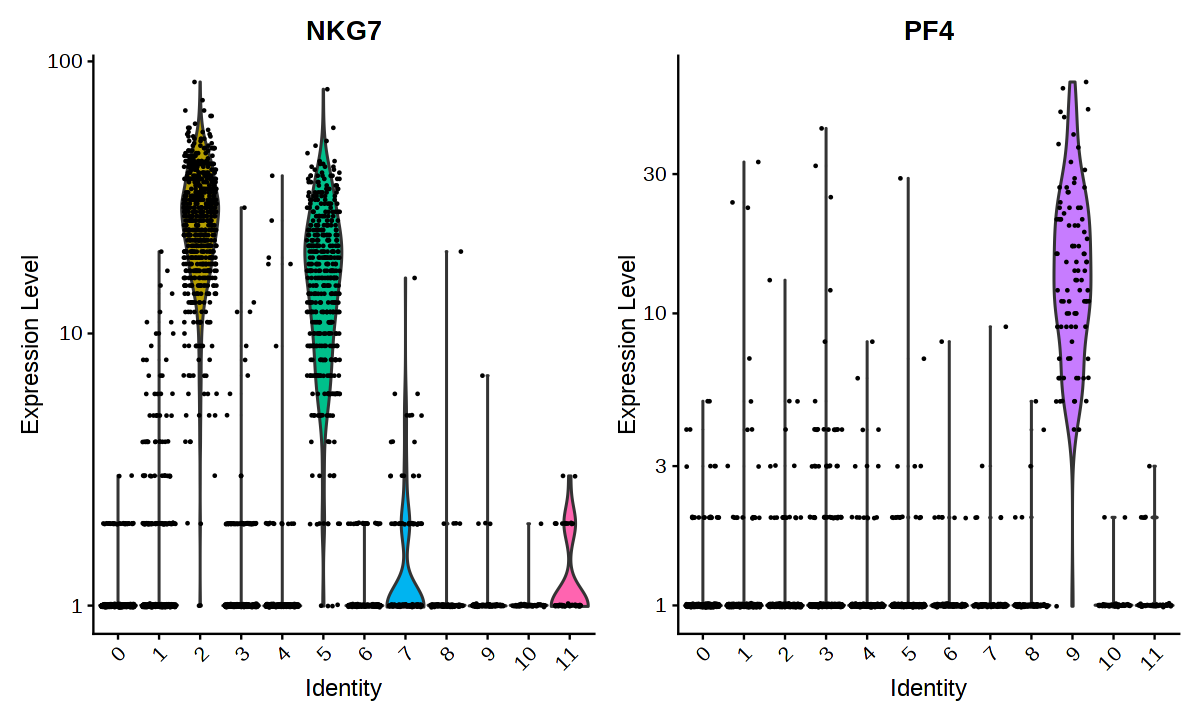

VlnPlot(pbmc, features = c("NKG7", "PF4"), slot = "counts", log = TRUE)


Warning message:
“The `slot` argument of `VlnPlot()` is deprecated as of Seurat 5.0.0.
ℹ Please use the `layer` argument instead.”

png

FeaturePlot(pbmc, features = c("MS4A1", "GNLY", "CD3E", "CD14", "FCER1A", "FCGR3A", "LYZ", "PPBP",
    "CD8A"))

png

pbmc.markers %>%
    group_by(cluster) %>%
    dplyr::filter(avg_log2FC > 1) %>%
    slice_head(n = 10) %>%
    ungroup() -> top10

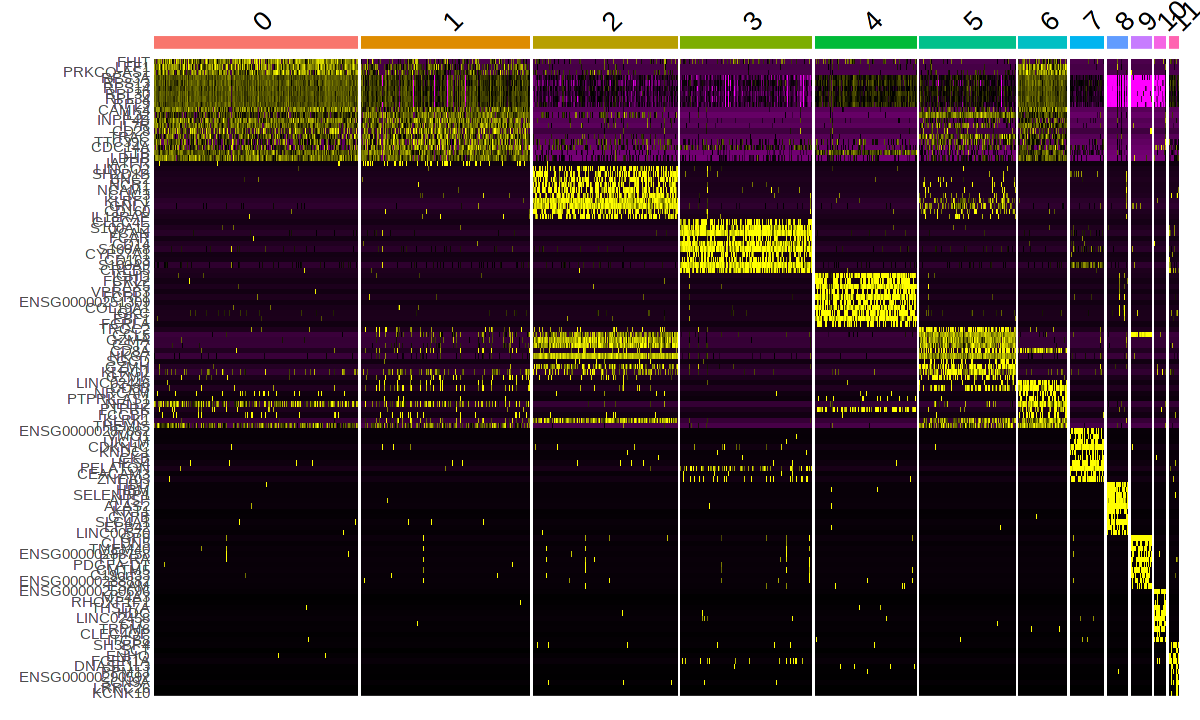

DoHeatmap(pbmc, features = top10$gene) + NoLegend()

png

Cell type annotation using SingleR

library(SingleCellExperiment )

sce <- as.SingleCellExperiment(pbmc)
sce <- scater::logNormCounts(sce)


sce

class: SingleCellExperiment
dim: 24785 4559
metadata(0):
assays(3): counts logcounts scaledata
rownames(24785): ENSG00000238009 ENSG00000241860 ... ENSG00000276345
  ENSG00000278817
rowData names(0):
colnames(4559): AAACCCATCAGATGCT-1 AAACGAAAGTGCTACT-1 ...
  TTTGTTGTCGAAGTGG-1 TTTGTTGTCGCATAGT-1
colData names(10): orig.ident nCount_RNA ... ident sizeFactor
reducedDimNames(2): PCA UMAP
mainExpName: RNA
altExpNames(0):

# Download and cache the normalized expression values of the data
# stored in the Human Primary Cell Atlas. The data will be
#  downloaded from ExperimentHub, returning a SummarizedExperiment
# object for further use.
hpca <- HumanPrimaryCellAtlasData()

# Obtain human bulk RNA-seq data from Blueprint and ENCODE
blueprint <- BlueprintEncodeData()


pred.hpca <- SingleR(test = sce,
      ref = hpca, labels = hpca$label.main)
tab_hpca <- table(pred.hpca$pruned.labels)
write.csv(sort(tab_hpca, decreasing=TRUE), 'pbmc_annotations_HPCA_general.csv', row.names=FALSE)

tab_hpca

           B_cell                BM                DC Endothelial_cells
              451                30                 1                 1
     Erythroblast               GMP        HSC_-G-CSF         HSC_CD34+
               60                 2                11                 1
         Monocyte       Neutrophils           NK_cell         Platelets
              759                39               677                93
 Pre-B_cell_CD34-           T_cells
                2              2350

Each row of the output DataFrame contains prediction results for a single cell. Labels are shown before (labels) and after pruning (pruned.labels), along with the associated scores.

head(pred.hpca)

DataFrame with 6 rows and 4 columns
                                             scores       labels delta.next
                                           <matrix>  <character>  <numeric>
AAACCCATCAGATGCT-1 0.1409902:0.3257687:0.281000:...      T_cells  0.0708860
AAACGAAAGTGCTACT-1 0.1407268:0.3072562:0.264148:...      T_cells  0.6026772
AAACGAAGTCGTAATC-1 0.0604399:0.0725122:0.184863:... Erythroblast  0.1268946
AAACGAAGTTGCCAAT-1 0.1585486:0.3228307:0.278787:...      T_cells  0.6492489
AAACGAATCCGAGGCT-1 0.1166524:0.3565152:0.277855:...       B_cell  0.0505309
AAACGAATCGAACGCC-1 0.1437411:0.3427680:0.299201:...      NK_cell  0.3155681
                   pruned.labels
                     <character>
AAACCCATCAGATGCT-1       T_cells
AAACGAAAGTGCTACT-1       T_cells
AAACGAAGTCGTAATC-1  Erythroblast
AAACGAAGTTGCCAAT-1       T_cells
AAACGAATCCGAGGCT-1        B_cell
AAACGAATCGAACGCC-1       NK_cell

pred.blueprint <- SingleR(test = sce,
      ref = blueprint, labels = blueprint$label.main)
tab_blueprint <- table(pred.blueprint$pruned.labels)
  write.csv(sort(tab_blueprint, decreasing=TRUE), 'pbmc_annotations_BlueprintENCODE_general.csv', row.names=FALSE)

tab_blueprint

          B-cells      CD4+ T-cells      CD8+ T-cells                DC
              455              1749               576                 3
Endothelial cells       Eosinophils      Erythrocytes               HSC
                1                50               128                 4
        Monocytes       Neutrophils          NK cells
              768                 3               692

head(pred.blueprint)

DataFrame with 6 rows and 4 columns
                                             scores       labels delta.next
                                           <matrix>  <character>  <numeric>
AAACCCATCAGATGCT-1 0.2145648:0.1136181:0.437872:... CD4+ T-cells  0.0512150
AAACGAAAGTGCTACT-1 0.2311086:0.1664737:0.393066:... CD4+ T-cells  0.3283657
AAACGAAGTCGTAATC-1 0.0977069:0.0728724:0.100641:... Erythrocytes  0.0757261
AAACGAAGTTGCCAAT-1 0.2289000:0.1565938:0.423090:... CD8+ T-cells  0.0620951
AAACGAATCCGAGGCT-1 0.2353403:0.1291495:0.500443:...      B-cells  0.1276654
AAACGAATCGAACGCC-1 0.2308036:0.1288775:0.417440:...     NK cells  0.1486502
                   pruned.labels
                     <character>
AAACCCATCAGATGCT-1  CD4+ T-cells
AAACGAAAGTGCTACT-1  CD4+ T-cells
AAACGAAGTCGTAATC-1  Erythrocytes
AAACGAAGTTGCCAAT-1  CD8+ T-cells
AAACGAATCCGAGGCT-1       B-cells
AAACGAATCGAACGCC-1      NK cells

pbmc$singleR_hpca = pred.hpca$pruned.labels
pbmc$singleR_blueprint = pred.blueprint$pruned.labels

Idents(pbmc) = pbmc$singleR_hpca
DimPlot(pbmc, reduction = "umap",
         label = TRUE, pt.size = 0.5,
          repel = TRUE) + NoLegend()
# Change back to cluster snn_res.0.1
Idents(pbmc) = pbmc$`RNA_snn_res.0.1`

png

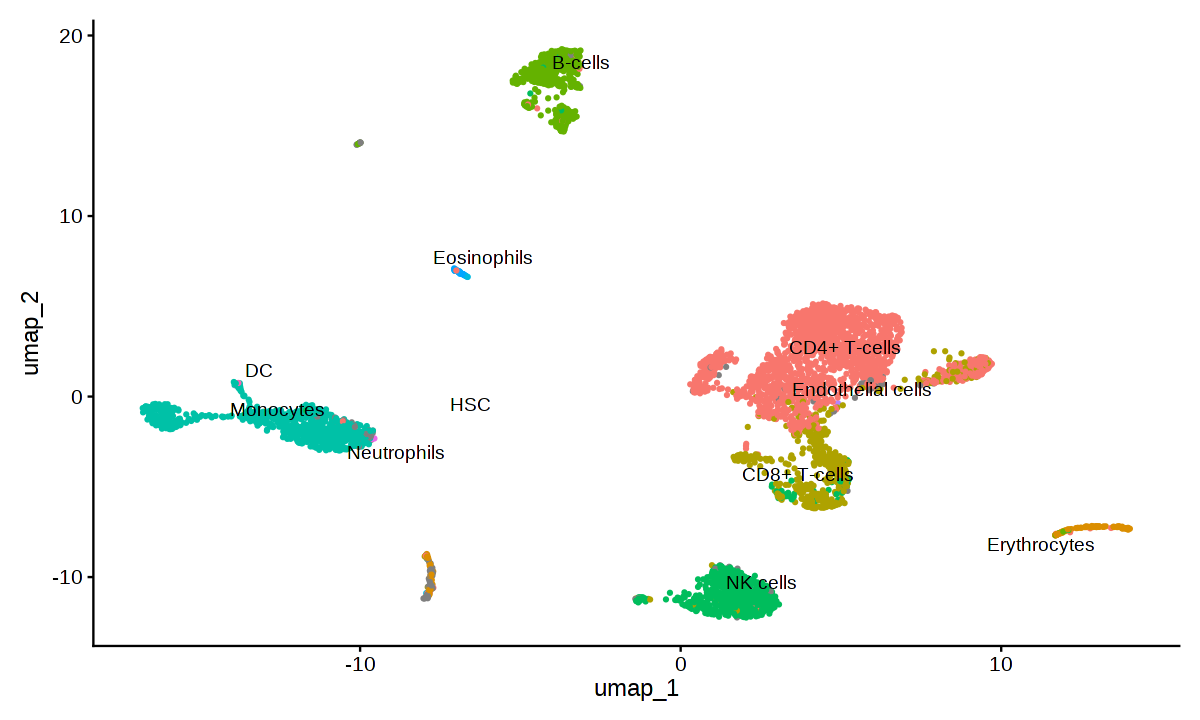

Idents(pbmc) = pbmc$singleR_blueprint
DimPlot(pbmc, reduction = "umap",
         label = TRUE, pt.size = 0.5,
          repel = TRUE) + NoLegend()
# Change back to cluster snn_res.0.1
Idents(pbmc) = pbmc$`RNA_snn_res.0.1`

png

Manual annotation

Markers Cell Type
IL7R, CCR7 Naive CD4+ T
CD14, LYZ CD14+ Mono
IL7R, S100A4 Memory CD4+
MS4A1 B
CD8A CD8+ T
FCGR3A, MS4A7 FCGR3A+ Mono
GNLY, NKG7 NK
FCER1A, CST3 DC
PPBP Platelet
table(Idents(pbmc))

   0    1    2    3    4    5    6    7    8    9
1215  938  761  662  465  224   98   94   54   48



FeaturePlot(pbmc, features = c("IL7R", "CD14", "CCR7", "S100A4", "MS4A1"))

png

DimPlot(pbmc, reduction = "umap",
         label = TRUE, pt.size = 0.5,
          repel = TRUE) + NoLegend()

png

pbmc = RenameIdents(pbmc, "2"="CD14+ Mono")
pbmc = RenameIdents(pbmc, "1"="Naive CD4+ T")
pbmc = RenameIdents(pbmc, "0"="Memory CD4+")
### Add more manual annotation based on your checking

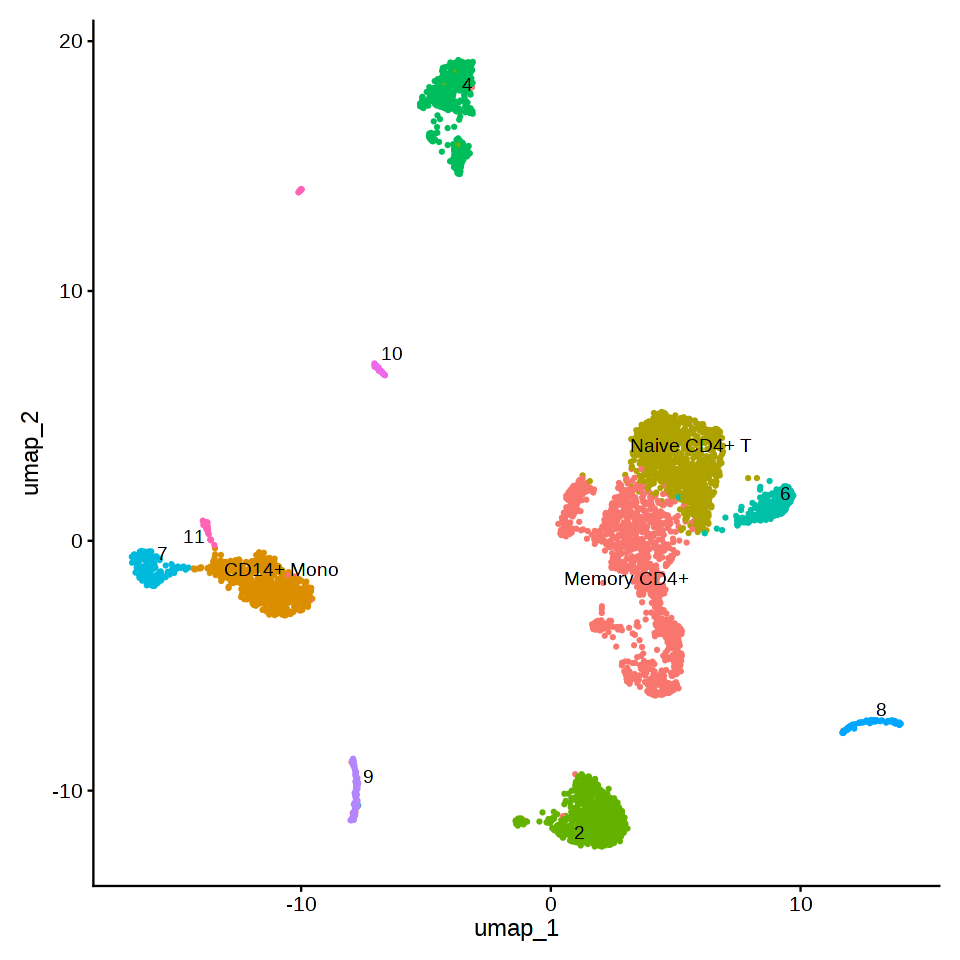

DimPlot(pbmc, reduction = "umap",
         label = TRUE, pt.size = 0.5,
          repel = TRUE) + NoLegend()

png

Save the Seurat object

saveRDS(pbmc, file = "Seurat_object_pbmc_final.rds")

remotes::install_github("10xGenomics/loupeR")
loupeR::setup()

Downloading GitHub repo 10xGenomics/loupeR@HEAD




── R CMD build ─────────────────────────────────────────────────────────────────
* checking for file ‘/tmp/RtmpwNVWV1/remotes10a53185aac/10XGenomics-loupeR-a169417/DESCRIPTION’ ... OK
* preparing ‘loupeR’:
* checking DESCRIPTION meta-information ... OK
* checking for LF line-endings in source and make files and shell scripts
* checking for empty or unneeded directories
* building ‘loupeR_1.1.2.tar.gz’



Installing package into ‘/content/usr/local/lib/R/site-library’
(as ‘lib’ is unspecified)

Warning message in fun(libname, pkgname):
“Please call `loupeR::setup()` to install the Louper executable and to agree to the EULA before continuing”



Installing Executable



2024/11/18 22:56:23 Downloading executable



The LoupeR executable is subject to the 10x End User Software License, available at:
https://10xgen.com/EULA

Do you accept the End-User License Agreement
(y/yes or n/no): yes

EULA

library(loupeR)

create_loupe_from_seurat(pbmc, output_name = "Seurat_object_pbmc_cloupe")


2024/11/18 22:57:18 extracting matrix, clusters, and projections

2024/11/18 22:57:18 selected assay: RNA

2024/11/18 22:57:18 selected clusters: active_cluster orig.ident RNA_snn_res.0.1 seurat_clusters singleR_hpca singleR_blueprint

2024/11/18 22:57:18 selected projections: umap

2024/11/18 22:57:18 validating count matrix

2024/11/18 22:57:19 validating clusters

2024/11/18 22:57:19 validating projections

2024/11/18 22:57:19 creating temporary hdf5 file: /tmp/RtmpwNVWV1/file10aaeba1e8.h5

2024/11/18 22:57:23 invoking louper executable

2024/11/18 22:57:23 running command: "/root/.local/share/R/loupeR/louper create --input='/tmp/RtmpwNVWV1/file10aaeba1e8.h5' --output='Seurat_object_pbmc_cloupe.cloupe'"

Reference

https://monashbioinformaticsplatform.github.io/Single-Cell-Workshop/pbmc3k_tutorial.html

https://bioinformatics.ccr.cancer.gov/docs/getting-started-with-scrna-seq/IntroToR_Seurat/

https://hbctraining.github.io/scRNA-seq/lessons/elbow_plot_metric.html
