Introduction to R

What is R

R is a language and environment for statistical computing and graphics.

• Runs on a variaty of operation systerms: Windows, Linux and MacOS

• Generates publication-ready plots

• Owns a large open-source community

• Extends functions as packages

Essetnial concepts for programming languages

Variables

Variable names can have letters, dots and undercores (e.g. gene_name, "csvfile.1" and chr1).

Functions

A function is a structured, reusable segment of code designed to carry out a specific set of operations. It can accept zero or more inputs (parameters) and can produce an output (result).

INPUT --function--> OUTPUT

The way to define a function is:

read_star_file <- function(file_path){
    ...code goes here...
    return(df)
}

The way to use a function in R is:

read_star_file(paths)

Basic data types

# assign a number to variable gene_count
gene1 <- 150
gene2 <- 200
gene1
gene2

150

200

# Examples of character value
gene_name1 <- "KRAS"
gene_name1

'KRAS'

# Examples of character value
"RAS" -> gene_name2
gene_name2

'RAS'

# Examples of character value
gene_name3 <- "KRAS"
gene_name3

'KRAS'

# Logical value
gene1 > gene2
gene1 < gene2
bool_val = gene1 < gene2

FALSE

TRUE

class(gene1)
class(gene_name)
class()

'numeric'

'character'

Basic data structure

An atomic vector is a collection of multiple values (numeric, character, or logical) stored in a single object. You can create an atomic vector using the c() function.

sample_names <- c("N2_day1_rep1",   "N2_day1_rep2", "N2_day1_rep3",
                  "N2_day7_rep1", "N2_day7_rep2", "N2_day7_rep3")
sample_names

1. 'N2_day1_rep1'
2. 'N2_day1_rep2'
3. 'N2_day1_rep3'
4. 'N2_day7_rep1'
5. 'N2_day7_rep2'
6. 'N2_day7_rep3'

group <- gsub("_rep\\d", "", sample_names)
group

1. 'N2_day1'
2. 'N2_day1'
3. 'N2_day1'
4. 'N2_day7'
5. 'N2_day7'
6. 'N2_day7'

coldata_df <- cbind(group = gsub("_rep\\d", "", sample_names))
coldata_df

A matrix: 6 × 1 of type chr

group
N2_day1
N2_day1
N2_day1
N2_day7
N2_day7
N2_day7

rownames(coldata_df) = sample_names
coldata_df

A matrix: 6 × 1 of type chr

	group
N2_day1_rep1	N2_day1
N2_day1_rep2	N2_day1
N2_day1_rep3	N2_day1
N2_day7_rep1	N2_day7
N2_day7_rep2	N2_day7
N2_day7_rep3	N2_day7

t(coldata_df)

A matrix: 1 × 6 of type chr

	N2_day1_rep1	N2_day1_rep2	N2_day1_rep3	N2_day7_rep1	N2_day7_rep2	N2_day7_rep3
group	N2_day1	N2_day1	N2_day1	N2_day7	N2_day7	N2_day7

is.matrix(coldata_df)
coldata_df <- as.data.frame(coldata_df)
is.data.frame(coldata_df)

TRUE

TRUE

A matrix can contain either character or numeric columns and a dataframe can contain both numeric and character columns.

A list is an ordered collection of objects, which can be any type of R objects (vectors, matrices, data frames, even lists).

count_files = list("sample" = 'N2_day1_rep1.ReadsPerGene.out.tab', "sample2"='N2_day1_rep2.ReadsPerGene.out.tab')
count_files

$sample

'N2_day1_rep1.ReadsPerGene.out.tab'

$sample2

'N2_day1_rep2.ReadsPerGene.out.tab'

gene_count = list("gene1" = 10, "gene2"=20)

lapply(gene_count, function(x){log2(x+1)})

$gene1

3.4594316186373

$gene2

4.39231742277876

log2_transform <- function(x){
    log2(x+1)
}
lapply(gene_count, log2_transform)

$gene1

3.4594316186373

$gene2

4.39231742277876

Dealing with text files

getwd()
#setwd()

'/content'

list.files()

1. 'N2_day1_rep1.ReadsPerGene.out.tab'
2. 'N2_day1_rep2.ReadsPerGene.out.tab'
3. 'N2_day1_rep3.ReadsPerGene.out.tab'
4. 'N2_day7_rep1.ReadsPerGene.out.tab'
5. 'N2_day7_rep2.ReadsPerGene.out.tab'
6. 'N2_day7_rep3.ReadsPerGene.out.tab'
7. 'sample_data'

file_paths <- list.files(pattern = "*..ReadsPerGene.out.tab")
file_paths

1. 'N2_day1_rep1.ReadsPerGene.out.tab'
2. 'N2_day1_rep2.ReadsPerGene.out.tab'
3. 'N2_day1_rep3.ReadsPerGene.out.tab'
4. 'N2_day7_rep1.ReadsPerGene.out.tab'
5. 'N2_day7_rep2.ReadsPerGene.out.tab'
6. 'N2_day7_rep3.ReadsPerGene.out.tab'

tab_N2_day1_rep1 <- read.table('N2_day1_rep1.ReadsPerGene.out.tab')
head(tab_N2_day1_rep1, 5)

A data.frame: 5 × 4

	V1	V2	V3	V4
	<chr>	<int>	<int>	<int>
1	N_unmapped	1332776	1332776	1332776
2	N_multimapping	1540190	1540190	1540190
3	N_noFeature	157102	19017455	18933214
4	N_ambiguous	536422	128854	120342
5	WBGene00000003	341	161	180

tab_N2_day1_rep2 <- read.table('N2_day1_rep2.ReadsPerGene.out.tab')
head(tab_N2_day1_rep2,5)

A data.frame: 5 × 4

	V1	V2	V3	V4
	<chr>	<int>	<int>	<int>
1	N_unmapped	1400596	1400596	1400596
2	N_multimapping	1305129	1305129	1305129
3	N_noFeature	152183	15009786	14975925
4	N_ambiguous	439830	104631	98489
5	WBGene00000003	415	198	217

tab_N2_day1_rep3 <- read.table('N2_day1_rep3.ReadsPerGene.out.tab')
head(tab_N2_day1_rep3,5)

A data.frame: 5 × 4

	V1	V2	V3	V4
	<chr>	<int>	<int>	<int>
1	N_unmapped	5887223	5887223	5887223
2	N_multimapping	1557570	1557570	1557570
3	N_noFeature	184441	17612359	17574940
4	N_ambiguous	514559	122385	115498
5	WBGene00000003	411	175	236

library(dplyr)

Attaching package: ‘dplyr’


The following objects are masked from ‘package:stats’:

    filter, lag


The following objects are masked from ‘package:base’:

    intersect, setdiff, setequal, union

tab_N2_day1_rep1 <- tab_N2_day1_rep1 %>% select(V1, V2)
head(tab_N2_day1_rep1, 5)
tab_N2_day1_rep2 <- tab_N2_day1_rep2[, c("V1", "V2")]
head(tab_N2_day1_rep2, 5)
tab_N2_day1_rep3 <- tab_N2_day1_rep3[, c("V1", "V2")]
head(tab_N2_day1_rep3, 5)

A data.frame: 5 × 2

	V1	V2
	<chr>	<int>
1	N_unmapped	1332776
2	N_multimapping	1540190
3	N_noFeature	157102
4	N_ambiguous	536422
5	WBGene00000003	341

A data.frame: 5 × 2

	V1	V2
	<chr>	<int>
1	N_unmapped	1400596
2	N_multimapping	1305129
3	N_noFeature	152183
4	N_ambiguous	439830
5	WBGene00000003	415

A data.frame: 5 × 2

	V1	V2
	<chr>	<int>
1	N_unmapped	5887223
2	N_multimapping	1557570
3	N_noFeature	184441
4	N_ambiguous	514559
5	WBGene00000003	411

df_merged <- merge(tab_N2_day1_rep1, tab_N2_day1_rep2, by = "V1")
head(df_merged)
df_merged <- merge(df_merged, tab_N2_day1_rep3, by = "V1")
head(df_merged)

A data.frame: 6 × 3

	V1	V2.x	V2.y
	<chr>	<int>	<int>
1	N_ambiguous	536422	439830
2	N_multimapping	1540190	1305129
3	N_noFeature	157102	152183
4	N_unmapped	1332776	1400596
5	WBGene00000001	3227	2168
6	WBGene00000002	270	203

A data.frame: 6 × 4

	V1	V2.x	V2.y	V2
	<chr>	<int>	<int>	<int>
1	N_ambiguous	536422	439830	514559
2	N_multimapping	1540190	1305129	1557570
3	N_noFeature	157102	152183	184441
4	N_unmapped	1332776	1400596	5887223
5	WBGene00000001	3227	2168	2589
6	WBGene00000002	270	203	266

The Reduce() function in R allows us to apply a function repeatedly to a list of elements. Here, we are applying merge() iteratively to a list of data frames.

df_mer_red <- Reduce(function(x, y) merge(x, y, by = "V1"),
                        list("tab_N2_day1_rep1" = tab_N2_day1_rep1,
                             "tab_N2_day1_rep2" = tab_N2_day1_rep2,
                             "tab_N2_day1_rep3" = tab_N2_day1_rep3))
head(df_mer_red, 5)

A data.frame: 5 × 4

	V1	V2.x	V2.y	V2
	<chr>	<int>	<int>	<int>
1	N_ambiguous	536422	439830	514559
2	N_multimapping	1540190	1305129	1557570
3	N_noFeature	157102	152183	184441
4	N_unmapped	1332776	1400596	5887223
5	WBGene00000001	3227	2168	2589

Producing Graphs with R

Producing Graphs using basic

Line charts

# Define the cars vector with 5 values
cars <- c(1, 3, 6, 4, 9)

# Graph the cars vector with all defaults
plot(cars)

Let's add a title, a line to connect the points, and some color:

# Define the cars vector with 5 values
cars <- c(1, 3, 6, 4, 9)

# Graph cars using blue points overlayed by a line
plot(cars, type="o", col="blue")

# Create a title with a red, bold/italic font
title(main="Autos", col.main="red", font.main=4)

# Define 2 vectors
cars <- c(1, 3, 6, 4, 9)
trucks <- c(2, 5, 4, 5, 12)

# Graph cars using a y axis that ranges from 0 to 12
plot(cars, type="o", col="blue", ylim=c(0,12))

# Graph trucks with red dashed line and square points
lines(trucks, type="o", pch=22, lty=2, col="red")

# Create a title with a red, bold/italic font
title(main="Autos", col.main="red", font.main=4)

csv_url <- "https://gist.githubusercontent.com/seankross/a412dfbd88b3db70b74b/raw/5f23f993cd87c283ce766e7ac6b329ee7cc2e1d1/mtcars.csv"

mtcars <- read.csv(csv_url)
mtcars

A data.frame: 32 × 12

model	mpg	cyl	disp	hp	drat	wt	qsec	vs	am	gear	carb
<chr>	<dbl>	<int>	<dbl>	<int>	<dbl>	<dbl>	<dbl>	<int>	<int>	<int>	<int>
Mazda RX4	21.0	6	160.0	110	3.90	2.620	16.46	0	1	4	4
Mazda RX4 Wag	21.0	6	160.0	110	3.90	2.875	17.02	0	1	4	4
Datsun 710	22.8	4	108.0	93	3.85	2.320	18.61	1	1	4	1
Hornet 4 Drive	21.4	6	258.0	110	3.08	3.215	19.44	1	0	3	1
Hornet Sportabout	18.7	8	360.0	175	3.15	3.440	17.02	0	0	3	2
Valiant	18.1	6	225.0	105	2.76	3.460	20.22	1	0	3	1
Duster 360	14.3	8	360.0	245	3.21	3.570	15.84	0	0	3	4
Merc 240D	24.4	4	146.7	62	3.69	3.190	20.00	1	0	4	2
Merc 230	22.8	4	140.8	95	3.92	3.150	22.90	1	0	4	2
Merc 280	19.2	6	167.6	123	3.92	3.440	18.30	1	0	4	4
Merc 280C	17.8	6	167.6	123	3.92	3.440	18.90	1	0	4	4
Merc 450SE	16.4	8	275.8	180	3.07	4.070	17.40	0	0	3	3
Merc 450SL	17.3	8	275.8	180	3.07	3.730	17.60	0	0	3	3
Merc 450SLC	15.2	8	275.8	180	3.07	3.780	18.00	0	0	3	3
Cadillac Fleetwood	10.4	8	472.0	205	2.93	5.250	17.98	0	0	3	4
Lincoln Continental	10.4	8	460.0	215	3.00	5.424	17.82	0	0	3	4
Chrysler Imperial	14.7	8	440.0	230	3.23	5.345	17.42	0	0	3	4
Fiat 128	32.4	4	78.7	66	4.08	2.200	19.47	1	1	4	1
Honda Civic	30.4	4	75.7	52	4.93	1.615	18.52	1	1	4	2
Toyota Corolla	33.9	4	71.1	65	4.22	1.835	19.90	1	1	4	1
Toyota Corona	21.5	4	120.1	97	3.70	2.465	20.01	1	0	3	1
Dodge Challenger	15.5	8	318.0	150	2.76	3.520	16.87	0	0	3	2
AMC Javelin	15.2	8	304.0	150	3.15	3.435	17.30	0	0	3	2
Camaro Z28	13.3	8	350.0	245	3.73	3.840	15.41	0	0	3	4
Pontiac Firebird	19.2	8	400.0	175	3.08	3.845	17.05	0	0	3	2
Fiat X1-9	27.3	4	79.0	66	4.08	1.935	18.90	1	1	4	1
Porsche 914-2	26.0	4	120.3	91	4.43	2.140	16.70	0	1	5	2
Lotus Europa	30.4	4	95.1	113	3.77	1.513	16.90	1	1	5	2
Ford Pantera L	15.8	8	351.0	264	4.22	3.170	14.50	0	1	5	4
Ferrari Dino	19.7	6	145.0	175	3.62	2.770	15.50	0	1	5	6
Maserati Bora	15.0	8	301.0	335	3.54	3.570	14.60	0	1	5	8
Volvo 142E	21.4	4	121.0	109	4.11	2.780	18.60	1	1	4	2

plot(mtcars$wt,mtcars$mpg, main="Scatterplot in Base R",
   xlab="Car Weight", ylab="MPG",
   pch=4, col = "blue", lwd=1, cex = 2)
abline(lm(mtcars$mpg~mtcars$wt), col="red")
text(mtcars$wt, mtcars$mpg, labels=rownames(mtcars), cex=0.5, font=2)

hist(mtcars$hp,
      prob = TRUE)
lines(density(mtcars$hp), # density plot
     lwd = 2, # thickness of line
     col = "red")
abline(v=mean(mtcars$hp),
     lty="dashed",
     col="blue")

Probability Density: It tells you how the data is distributed over different ranges (or bins) of values. The height of each bar shows how densely the data is packed in that range of horsepower values.

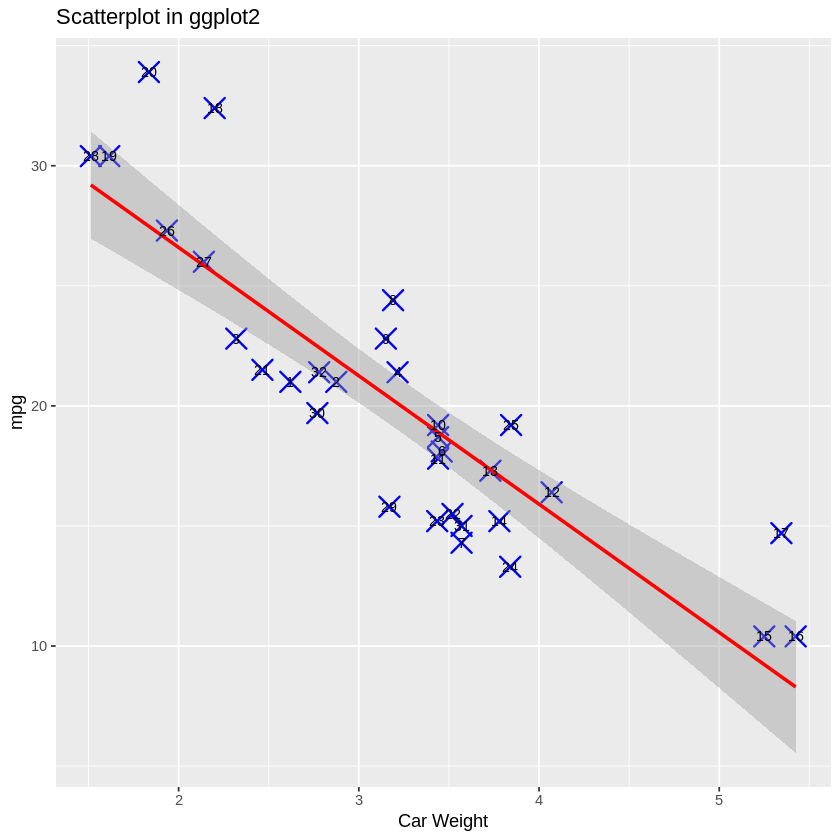

Producing graphs using ggplot2

library(ggplot2)

ggplot(mtcars, aes(x=wt, y=mpg)) +
  geom_point(size=5, shape=4, color="blue", stroke=1) +
  geom_smooth(method=lm, color="red") +
  ggtitle("Scatterplot in ggplot2") +
  xlab("Car Weight") + # for the x axis label
  geom_text(label=rownames(mtcars),cex=3)

`geom_smooth()` using formula = 'y ~ x'

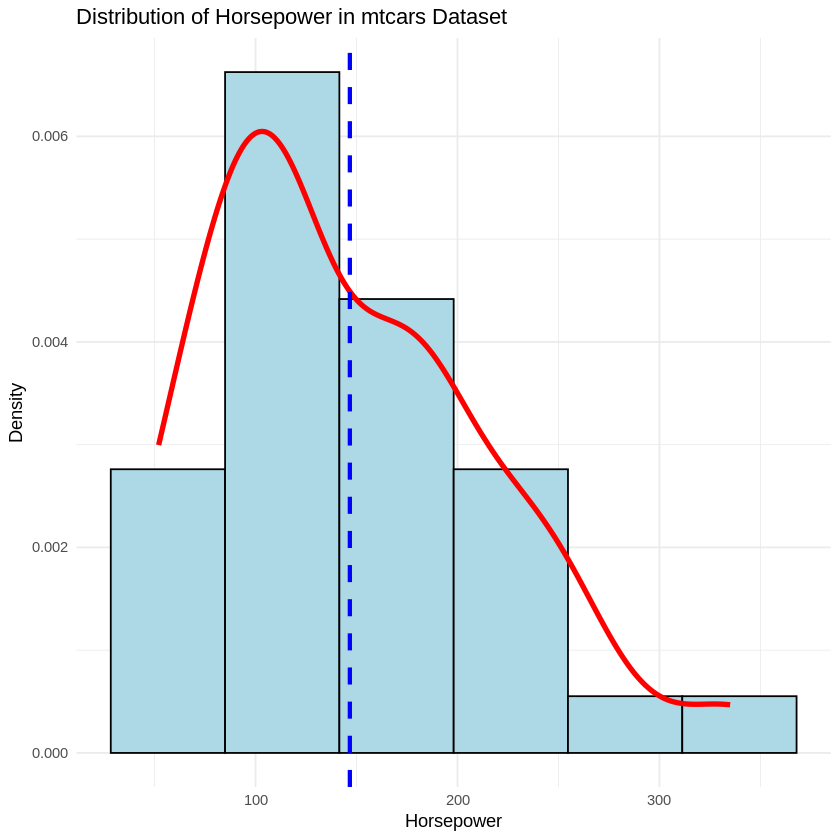

ggplot(mtcars, aes(x = hp)) +
  geom_histogram(aes(y = ..density..),
                 bins = 6, # You can adjust the number of bins
                 fill = "lightblue",
                 color = "black") +  # Histogram with probability density
  geom_density(color = "red", size = 1.5) +  # Add the density plot
  geom_vline(aes(xintercept = mean(hp)),
             linetype = "dashed",
             color = "blue",
             size = 1.2) +  # Add dashed blue vertical line at the mean
  labs(title = "Distribution of Horsepower in mtcars Dataset",
       x = "Horsepower",
       y = "Density") +  # Add axis labels and title
  theme_minimal() # Use a clean theme for the plot

Reference

https://sites.harding.edu/fmccown/R/

https://jtr13.github.io/cc21fall2/base-r-vs.-ggplot2-visualization.html#base-r-vs.-ggplot2-visualization
